Pressure Driven

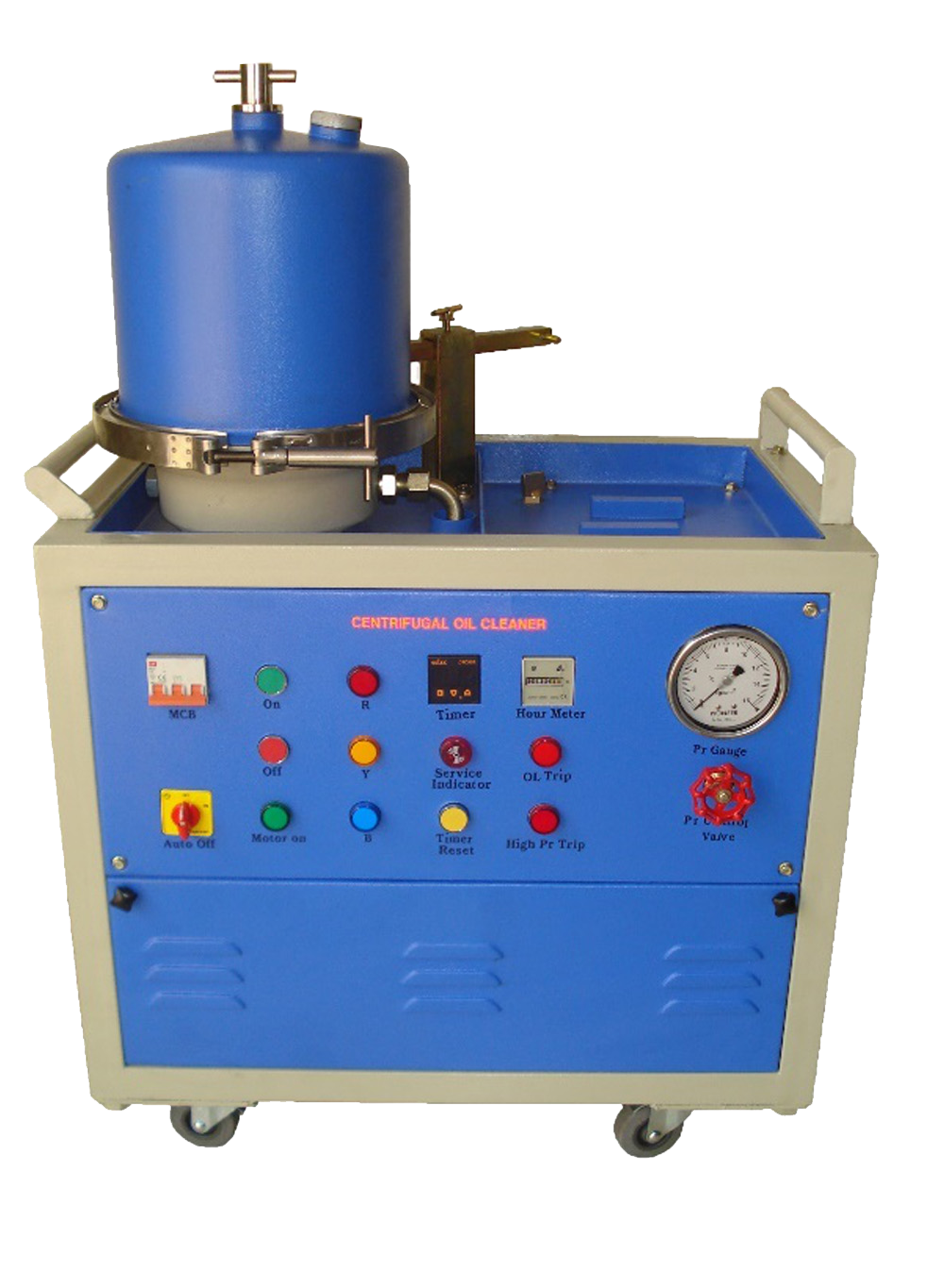

Centrifugal Oil Cleaner operates on the reaction turbine principle. Oil enters the Centrifuge under pressure and passes into the rotor through hollow rotor shaft. The oil pressure and flow are converted in rotational energy as the oil pressure and flow is converted in rotational energy as the oil escapes through the jets, producing speed up to 8000 RPM & above. The resultant Centrifugal force removes dirt from the engine oil depositing it on the inner wall of rotor in dense cake form. Clean oil drains back directly to the engine oil sump by gravity.
Centrifugal Oil Cleaner removes very fine dirt from Oil up to 1 and below. Inside the Centrifuge a twin jet rotor rotating speeds up to 8000 RPM, creates centrifugal forces 2000 times greater than gravity. This removes dirt and contaminants out of oil, which is deposited on the inner wall of the rotor as a thick layer. The collected dirt can be easily cleaned & the unit put back to use again.
