The disc-type centrifugal separator is 3-way separation design. It able to separate sludge, water and oil in one and continuous process. It is design for meeting Marin Centrifugal Oil Separator standard which is mainly used for the purification of the heavy fuel oil in the ship, DX series can effectively remove water and impurities from the oil, play a role in the clarification and purification, reduce operating costs and extend the life of the engine.
This machine can be applied to
This machine can also be applied to other areas of non-homogeneous suspensions or emulsions, separation based on differential of specific gravity can also be used in Medical Industries, Food Processing industries, Chemical industries etc.
Build in Heater, Auto sludge Discharge Features, semi auto, fully auto with PLC touch screen, explosion proof requirement.

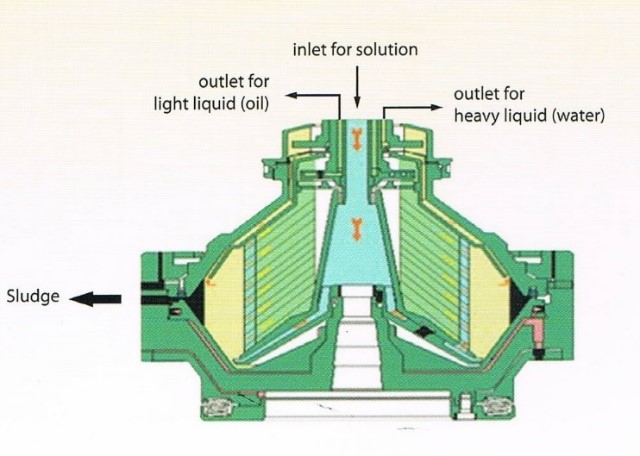

Depending on viscosity of liquid, it can be first heated to certain degree in our heater system, then the liquid will direct to our Disc Drum which is spinning at ultra-high speed rotation, the different density of the liquid and liquid or liquid and solid will be separating based on its differential density under the effect of strong centrifugal force into a circular annular shape, the maximum density of the solid particles will be divert outward movement and accumulate in the drum circumferential wall, the light phase liquid in the innermost layer. Drum disc is divided into a number of thin-layer separation space, thus greatly reducing sedimentation distance, improve and increase the separation effect. Any particles reach the disc inner surface can be separated out by the centrifuge force. Finally, oil will be discharged out through the light-centripetal-outlet point, water discharge out through the heavy-centripetal-outlet point, and the particles discharged through the Sludge discharging outlet point, once the self -desludging is activated.
